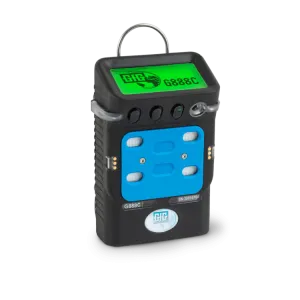

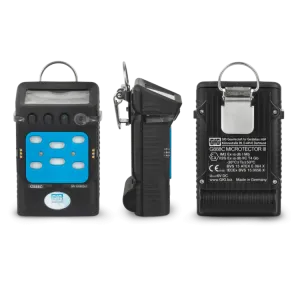

GFG Gas Detector G888
Rp. 0
- EU Type Examination Certificate : BVS 15 ATEX E 064 X
- IECEx Certificate of Conformity : IECEx BVS 15.0056 X
- Electromagnetic compatibility : DIN EN 50270:2015
- Illuminated LCD full graphic display, automatic size adjustment for optimum reading, display of battery capacity, gas concentration as current value and peak value
- Depending on gas type 3 or 2 instantaneous value and 2 exposure value alarms, battery alarm with visual and audible signal as well as display
color of display depending on alarm status (orange/red) Horn: 103 dB(A) (can be reduced to 90 dB(A))
- Power Supply : NiMH rechargeable battery module; 2.6 V 2100 mAh; rechargeable
- Material: Rubberized polycarbonate
- Dimensions: 68 x 100 x 39 mm (W x H x D), Weight: Up to 275 g (depending on sensor equipment), Protection class: IP67
- IECEx Certificate of Conformity : IECEx BVS 15.0056 X
- Electromagnetic compatibility : DIN EN 50270:2015
- Illuminated LCD full graphic display, automatic size adjustment for optimum reading, display of battery capacity, gas concentration as current value and peak value
- Depending on gas type 3 or 2 instantaneous value and 2 exposure value alarms, battery alarm with visual and audible signal as well as display
color of display depending on alarm status (orange/red) Horn: 103 dB(A) (can be reduced to 90 dB(A))
- Power Supply : NiMH rechargeable battery module; 2.6 V 2100 mAh; rechargeable
- Material: Rubberized polycarbonate
- Dimensions: 68 x 100 x 39 mm (W x H x D), Weight: Up to 275 g (depending on sensor equipment), Protection class: IP67
More Product
Rp. 0
Suitable for the G888 and G999 portable gas detection devices and the Connected Safety Monitor TeamLink
Can be charged stationary or on the go
Optional: power supply unit or car charging adapter
Can be charged stationary or on the go
Optional: power supply unit or car charging adapter
Rp. 0
Docking Station for Microtector III and Polytector III
Connections:
1 solenoid valve (air/gas)
3 hose connectors (gas/air/exhaust gas)
1 socket for pressure switch 6.3 mm for test gas monitoring
2 interfaces RS485 (RJ45 sockets)
Readout:
Status display of the gas detector
Alarm LED
Real time clock
Power Supply : 12 Volt DC (6.3 mm jack)
Pump : Performance 0.5 l/min, demand flow regulator
Dimensions : 143 x 125 x 225 mm (H x W x D)
Weight : 800 g
Full automatic bump test
Quick calibration
Easy handling
No PC required
Connections:
1 solenoid valve (air/gas)
3 hose connectors (gas/air/exhaust gas)
1 socket for pressure switch 6.3 mm for test gas monitoring
2 interfaces RS485 (RJ45 sockets)
Readout:
Status display of the gas detector
Alarm LED
Real time clock
Power Supply : 12 Volt DC (6.3 mm jack)
Pump : Performance 0.5 l/min, demand flow regulator
Dimensions : 143 x 125 x 225 mm (H x W x D)
Weight : 800 g
Full automatic bump test
Quick calibration
Easy handling
No PC required
Rp. 0
ATEX-approval:
ATEX ` II 2G EEx ib IIC T4/T3
–20°C ≤ Ta ≤ +45°C/+55°C
EC-type examination certificate:
DMT 99 ATEX
GAS : H2S, O2 dan CO
Operational time : up to 9 months
Alarms : 3 threshold alarms, battery alarm, STEL, TWA
Audible : 95 dB(A) (30cm)
Visual : 2 LEDs, 360° visible
Detection principle : Electrochemical sensor
Gases : Toxic gases, Oxygen and Hydrogen
Gas supply : Diffusion / Pump (optional)
Temperature range : -20°C .. +50°C
Humidity : 5 .. 99% r. h.
Pressure : 700 .. 1300 hPa
Dimensions : 47 x 88 x 25 mm (W x H x D)
Weight : 85 g
Enclosure : ABS, 3-times metallised
Protection class : IP54
ATEX ` II 2G EEx ib IIC T4/T3
–20°C ≤ Ta ≤ +45°C/+55°C
EC-type examination certificate:
DMT 99 ATEX
GAS : H2S, O2 dan CO
Operational time : up to 9 months
Alarms : 3 threshold alarms, battery alarm, STEL, TWA
Audible : 95 dB(A) (30cm)
Visual : 2 LEDs, 360° visible
Detection principle : Electrochemical sensor
Gases : Toxic gases, Oxygen and Hydrogen
Gas supply : Diffusion / Pump (optional)
Temperature range : -20°C .. +50°C
Humidity : 5 .. 99% r. h.
Pressure : 700 .. 1300 hPa
Dimensions : 47 x 88 x 25 mm (W x H x D)
Weight : 85 g
Enclosure : ABS, 3-times metallised
Protection class : IP54
Rp. 0
- EU Type Examination Certificate : BVS 15 ATEX E 064 X
- IECEx Certificate of Conformity : IECEx BVS 15.0056 X
- Electromagnetic compatibility : DIN EN 50270:2015
- Illuminated LCD full graphic display, automatic size adjustment for optimum reading, display of battery capacity, gas concentration as current value and peak value
- Depending on gas type 3 or 2 instantaneous value and 2 exposure value alarms, battery alarm with visual and audible signal as well as display
color of display depending on alarm status (orange/red) Horn: 103 dB(A) (can be reduced to 90 dB(A))
- Power Supply : NiMH rechargeable battery module; 2.6 V 2100 mAh; rechargeable
- Material: Rubberized polycarbonate
- Dimensions: 68 x 100 x 39 mm (W x H x D), Weight: Up to 275 g (depending on sensor equipment), Protection class: IP67
- IECEx Certificate of Conformity : IECEx BVS 15.0056 X
- Electromagnetic compatibility : DIN EN 50270:2015
- Illuminated LCD full graphic display, automatic size adjustment for optimum reading, display of battery capacity, gas concentration as current value and peak value
- Depending on gas type 3 or 2 instantaneous value and 2 exposure value alarms, battery alarm with visual and audible signal as well as display
color of display depending on alarm status (orange/red) Horn: 103 dB(A) (can be reduced to 90 dB(A))
- Power Supply : NiMH rechargeable battery module; 2.6 V 2100 mAh; rechargeable
- Material: Rubberized polycarbonate
- Dimensions: 68 x 100 x 39 mm (W x H x D), Weight: Up to 275 g (depending on sensor equipment), Protection class: IP67
